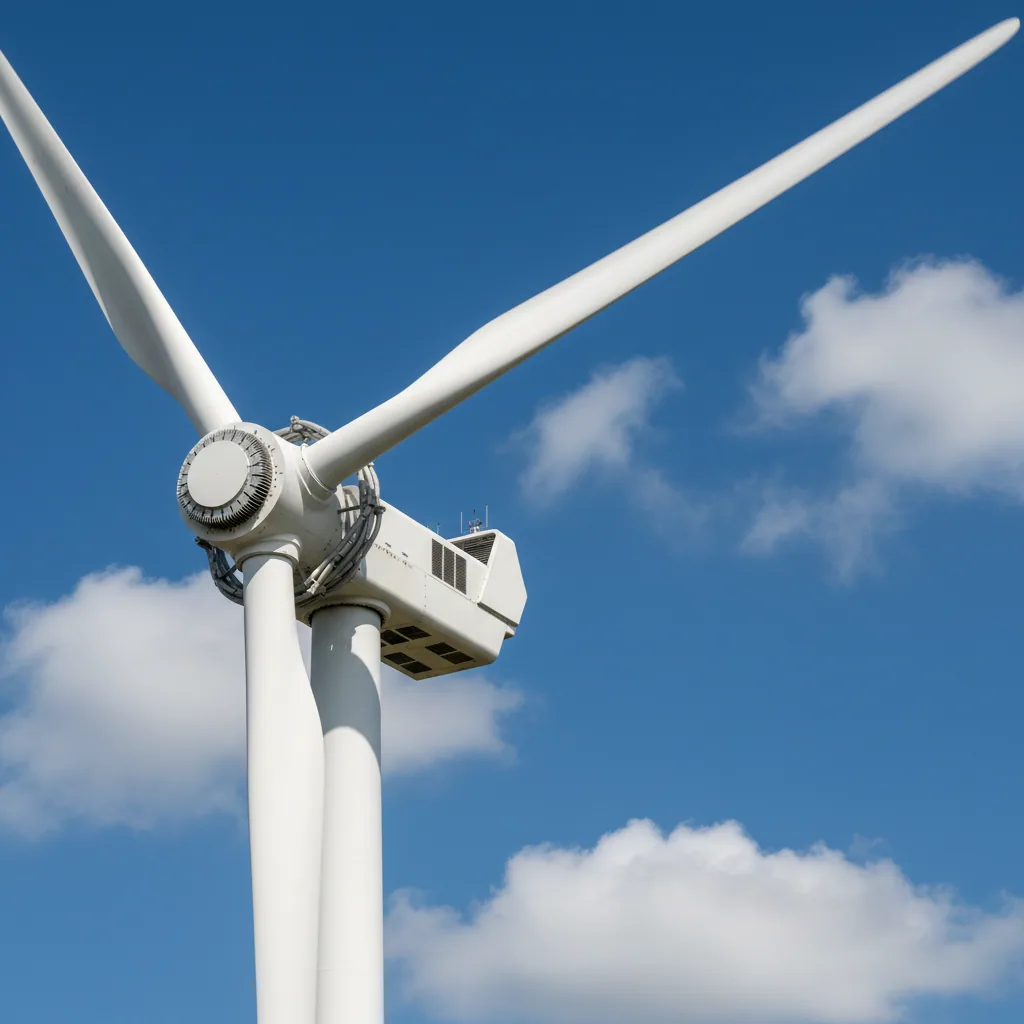

How Wind Turbines Work: From a Breeze to the Power Grid

Wind Into Electricity: The Core Physics

A wind turbine does not simply spin because wind pushes on flat surfaces. That would be wildly inefficient. Instead, turbine blades work on the same aerodynamic principle as airplane wings — they use lift, not drag, to generate torque.

Each blade is an airfoil: curved on the front face, flatter on the back. When wind passes over the curved surface, it accelerates and creates a low-pressure zone. The pressure difference between front and back generates a force perpendicular to the wind direction — that is lift — and it rotates the blade around the hub. A well-designed blade harvests far more energy from that pressure difference than it ever could from wind simply pushing against it.

The rotation speed at the blade tip typically runs 6 to 8 times faster than the wind speed itself. Engineers call this the tip-speed ratio, and optimizing it is central to turbine design. Too slow and you leave energy on the table. Too fast and drag losses dominate.

The Betz Limit: Why You Can't Extract All the Wind's Energy

In 1919, German physicist Albert Betz proved mathematically that no turbine can extract more than 59.3% of a wind stream's kinetic energy. This ceiling is called the Betz limit, and it is not a manufacturing problem — it is a law of physics.

The reasoning is straightforward. If a turbine extracted 100% of the wind's kinetic energy, the air would have to stop completely behind the rotor. But stopped air cannot flow away to make room for more incoming air, so the whole system would stall. To keep air moving through the rotor, you must leave some kinetic energy in it. Betz's math shows the optimal extraction point sits at 59.3%.

Modern three-blade horizontal-axis turbines achieve roughly 35–45% real-world efficiency — impressively close to the theoretical ceiling once you account for mechanical friction, electrical losses, and blade imperfections. The three-blade design dominates commercially because it delivers the best balance of efficiency, structural loads, and noise.

From Rotor to Grid: The Drivetrain

The rotor hub connects to a main shaft rotating at 6–20 RPM — far too slow to drive a standard electrical generator, which typically needs 1,000–1,800 RPM. Most utility-scale turbines solve this with a gearbox that steps up the rotation speed by a factor of roughly 100:1.

The gearbox drives a high-speed shaft connected to the generator, which produces three-phase alternating current. A power converter then matches this output to the grid's frequency — 60 Hz in the United States, 50 Hz in Europe. The turbine's output voltage, typically around 690 volts, gets stepped up by a transformer to the transmission voltage required for the grid.

Gearboxes are effective but are also the most maintenance-intensive component in a turbine. Gear teeth wear, lubricants degrade, and gearbox failures account for a significant share of turbine downtime. This drove the development of direct-drive turbines, which eliminate the gearbox entirely.

In a direct-drive system, the rotor connects straight to a large-diameter permanent magnet generator that operates at low RPM. Siemens Gamesa and GE both manufacture direct-drive utility turbines. The tradeoff: the generator itself becomes very large and heavy, adding mass to the nacelle. But without gearbox failures, lifetime maintenance costs drop substantially.

Speed Control: Pitch and Yaw Systems

Wind speed is not constant. A turbine needs to manage its output across a wide range — from the cut-in speed of about 3–4 m/s (7–9 mph), where it first starts generating power, up through its rated speed of roughly 12–13 m/s (27–29 mph), where it reaches full nameplate capacity, and up to the cut-out speed around 25 m/s (56 mph), where it shuts down to prevent damage from extreme loads.

Blade pitch control handles the upper range. Each blade can rotate around its own axis — pitching the blade toward or away from the wind changes how much lift it generates. At rated speed, the turbine pitches the blades to maintain constant power output rather than letting loads increase unchecked. In a storm, the blades pitch to a feathered position (parallel to the wind) and the rotor stops.

Yaw control keeps the entire nacelle pointed into the wind. Wind direction sensors on the nacelle feed data to a yaw drive motor that rotates the turbine on its tower. If the turbine pointed sideways to the wind, it would lose most of its energy capture — yaw misalignment of even 10 degrees can reduce power output by 1.5–3%. Modern turbines continuously adjust yaw to track shifting wind direction.

Why Turbines Are So Tall

Hub heights for modern utility turbines have climbed from roughly 50 meters in the 1990s to 100–160 meters today, and that trend continues. The reason is straightforward: wind speed increases with altitude, and the relationship is steep enough to matter enormously for energy output.

Wind engineers use the power law profile to model this. Wind speed scales approximately as the seventh root of height above ground — meaning doubling the hub height raises average wind speed by about 10%. Since power available in wind scales with the cube of wind speed, that 10% increase in speed translates to roughly a 33% increase in power output. A turbine at 120 meters hub height captures dramatically more energy than the same turbine at 60 meters on the same site.

Height also gets the rotor above ground-level turbulence caused by trees, buildings, and terrain features. Smoother, more consistent airflow means less mechanical fatigue on blades and drivetrain components and more predictable power output.

Onshore vs Offshore: Key Differences

Onshore wind turbines account for the vast majority of global installed capacity — about 900 GW as of 2025. They are cheaper to build ($1,500–$2,000 per kW installed) and straightforward to maintain. Typical hub heights run 80–120 meters, with rotor diameters of 90–130 meters. Onshore sites achieve capacity factors of 25–40% — meaning the turbine produces 25–40% of its theoretical maximum output averaged over a full year.

Offshore turbines operate in a fundamentally different environment. Wind over open water is stronger, less turbulent, and more consistent than wind over land. This pushes offshore capacity factors to 35–50% — a major improvement. Modern offshore turbines are also much larger: GE's Haliade-X and Vestas's V236 both have rotor diameters exceeding 220 meters and nameplate capacities of 13–15 MW, roughly 3–5 times larger than a typical onshore machine.

The offshore construction cost premium is substantial — $4,000–$6,000 per kW — driven by specialized installation vessels, subsea cables, marine foundations, and the logistics of working at sea. You can read more about the current state of the US offshore market in our article on US offshore wind in 2026.

SCADA Systems: The Turbine's Brain

Every utility turbine runs a Supervisory Control and Data Acquisition (SCADA) system that monitors hundreds of parameters in real time: wind speed and direction, rotor speed, generator temperature, gearbox oil temperature, blade pitch angles, grid voltage, and power output, among others. Data is logged at 10-minute intervals and transmitted to an operations center that may manage hundreds of turbines across multiple wind farms.

SCADA systems trigger automatic shutdowns when sensors detect abnormal conditions — a bearing running too hot, a gearbox vibration outside normal range, a grid fault. Modern predictive maintenance uses machine learning to detect the early signatures of component failures weeks before they cause a breakdown, scheduling maintenance proactively rather than after a failure. This capability has materially improved the fleet availability rates of large wind farms, which now commonly exceed 97% uptime.

Wind Farm Layout and Wake Effects

Placing turbines in a wind farm is not simply a matter of fitting as many as possible into available land. Each turbine extracts energy from the wind, leaving a turbulent, lower-speed wake behind it. A turbine operating in another turbine's wake captures less energy and experiences higher fatigue loads from turbulence.

Standard practice spaces turbines 5–10 rotor diameters apart in the prevailing wind direction and 3–5 diameters apart crosswind. For a turbine with a 120-meter rotor, that means spacing of 600–1,200 meters downwind. Wake losses in typical wind farm layouts run 10–20% of potential output — a significant factor in site design and energy yield assessments.

Engineers use computational fluid dynamics models to optimize turbine placement and minimize wake interactions. Some farms now use active wake control, deliberately misaligning individual turbines slightly to deflect their wakes away from downstream machines, improving total farm output.
